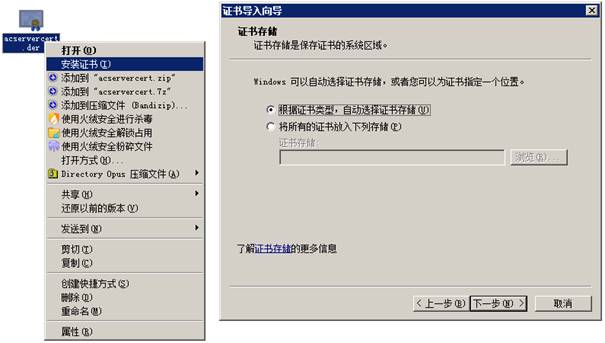

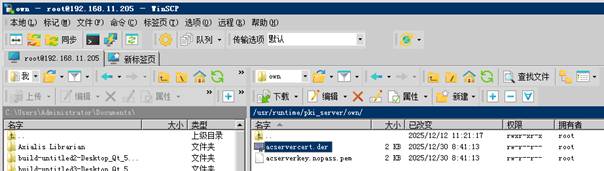

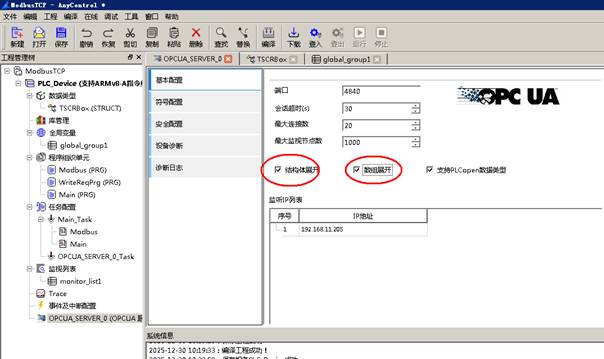

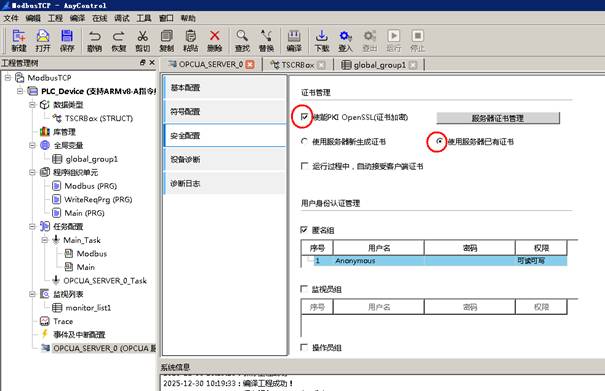

70 Collecting AnyControl data through Opc Ua The structure and array in PLC need to be unfolded, otherwise the elements underneath cannot be scanned. Enable PKI, otherwise PDA computer will prompt certificate error. Copy the certificate from the PLC to the PDAServer computer through SSH tool and install the certificate.
