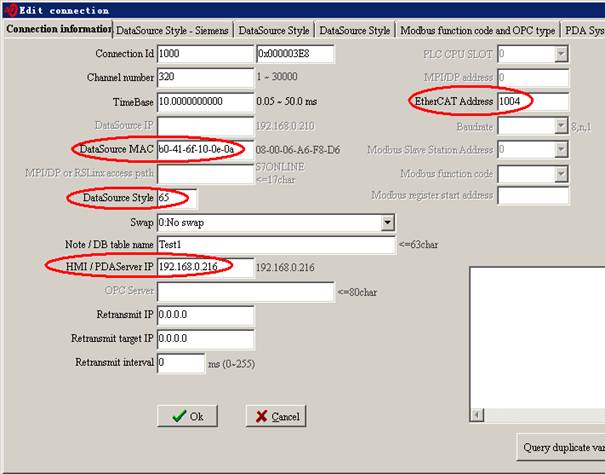

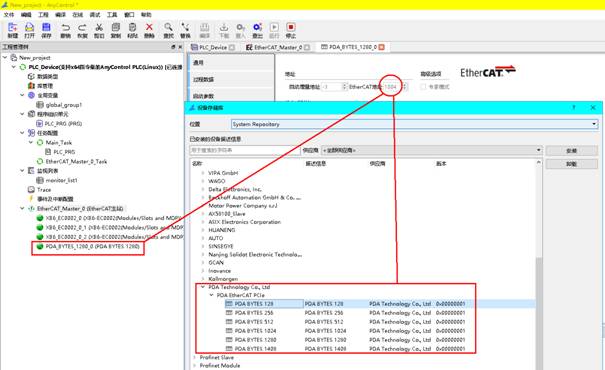

62 PDAServer as EtherCAT Slave EtherCAT communicates through MAC addresses and does not require setting an IP address. The PDA system integrates the EtherCAT slave protocol into the regular Ethernet card of the computer, so PDAServer can serve as an EtherCAT slave. The device description file is PDA-EtherCAT_Slave_V1.00.xml, which supports device scanning and automatic recovery when disconnected from the network. The PDA data source type is 65, and the data collection cycle can reach 0.5ms. One network port of the PDA server can be used as the last slave to connect to the EtherCAT slave network, and the PDA system supports multiple network ports to connect to multiple EtherCAT slave networks. An EtherCAT slave network can have only one PDA slave. An EtherCAT slave network cannot host multiple PDA slaves. An EtherCAT slave link includes all inputs and outputs, and one frame of data cannot exceed 1498 bytes. The EtherCAT slave of PDA supports 128, 256, 512, 1024, 1280, and 1408 bytes. The imported equipment library, configuration, and operating status in PLC are shown in the following figure. The main configuration information of the PDA system is shown in the following figure. The corresponding Config. csv is as follows: [1000,320CH,10.000ms,,65,Test1,192.168.0.216,,1004,,,,b0-41-6f-10-0e-0a]
