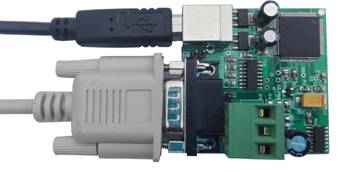

33 RS232 / RS485 Supports all baud rates, including 50, 75, 100, 110, 134, 150, 300, 600, 1200, 1800, 2400, 3600, 4000, 4800, 7200, 9600, 14400, 16000, 19200, 28800, 38400, 51200, 56000, 57600, 64000, 76800, 115200, 128000, 153600, 230400, 250000, 256000, 460800, 500000, 576000, 614400, 921600, 1000000, 1200000, 1228800, 1500000, 1562500, 2000000, 3000000, 3125000, etc, The frame header is 3 and 252, and the frame footer is 252 and 3. Data can be collected in two ways: 33: multi connection synchronous collection, and 52: multi frame data packaging. The following figure shows data collection through serial ports and fiber to USB serial ports. PDAU COM-2AI-0AB0 can collect 2-channel analog data at high speed, using serial communication, with a size of 5cm * 5cm, and can be embedded into user systems. Running pdaTools.exe as an administrator can automatically register serial port controls.
