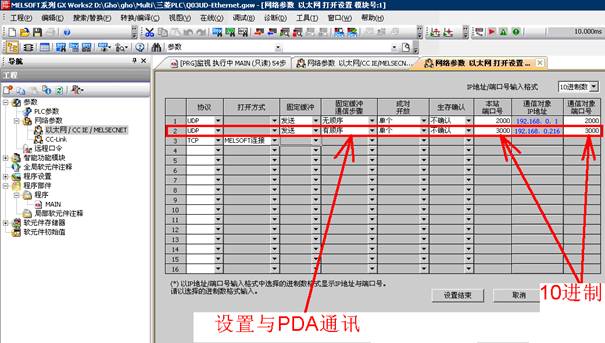

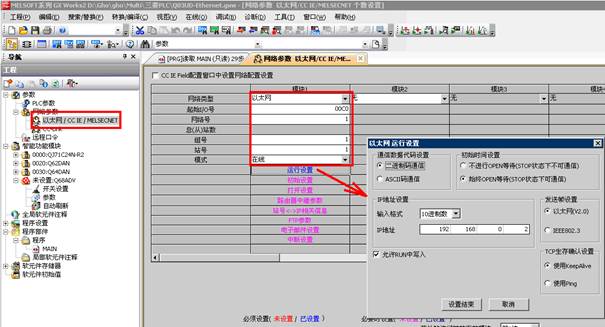

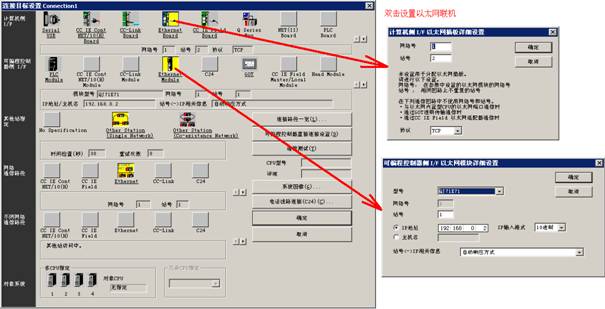

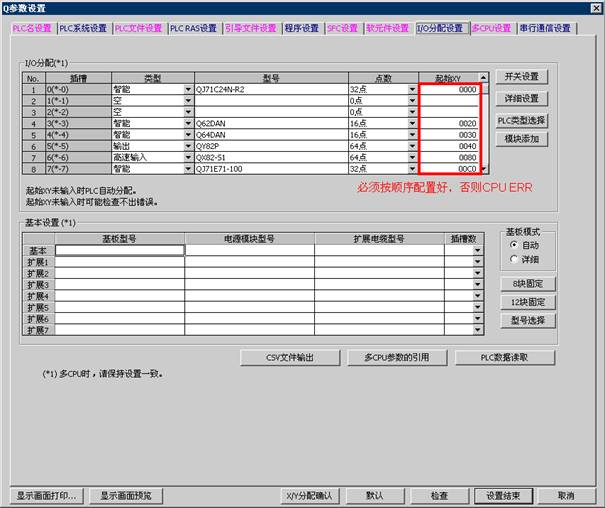

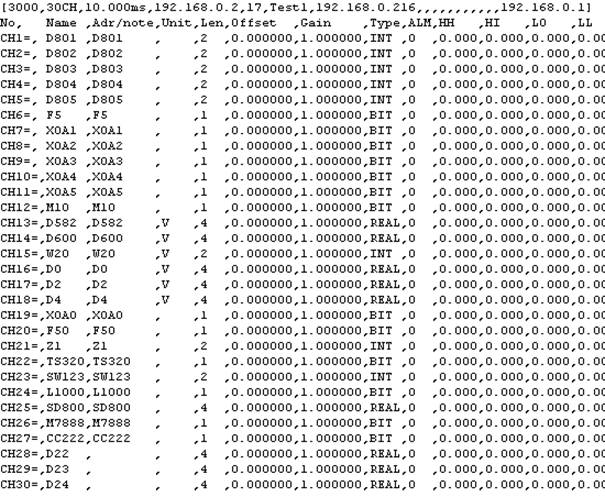

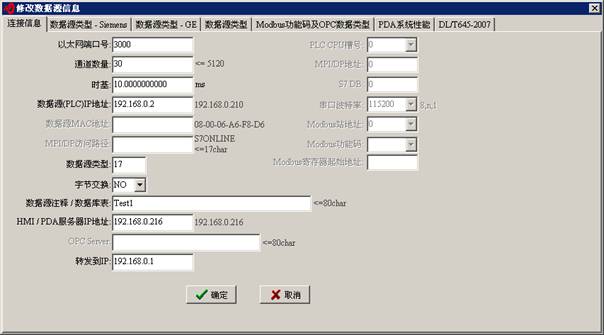

40 MITSUBISHI MELSECT – QnA 3E After setting up Ethernet and downloading, reset the RESET switch on CPU, the IP address and other can be written to PLC. The data source type is 17, bytes are not exchanged, and the memory area can be collected as the last section. Ethernet login setup.
