Process Data Acquisition – PDA -- Detailed
analysis of quality manage&industrial big data sources |
|||||
|
56 PDA
system scheme for converter, RH furnace, LF furnace in steel plant |
|||||
31
Beckhoff Ads
Data source type is 15, Effective collection period is not less than 10ms. Multi byte char type is not supported, please use type string instead. Modify PLC AMS Net (display, mouse and keyboard can be connected to the CX controller).

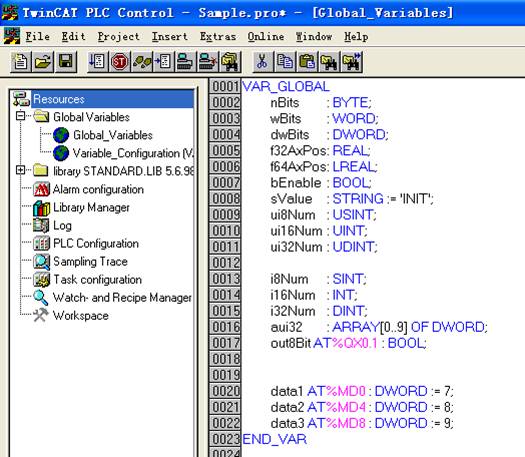

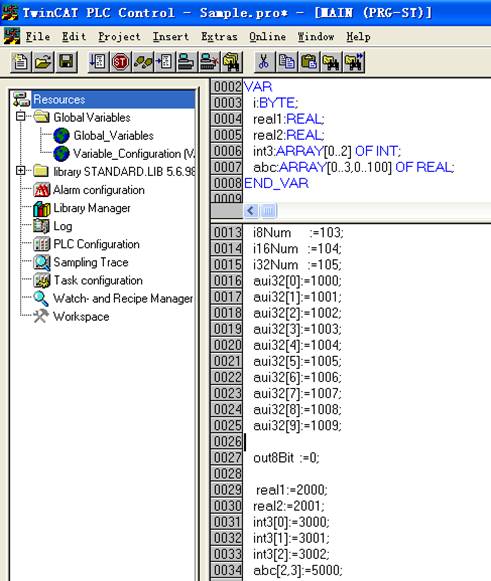

The following figure is some variables defined in the PLC program.

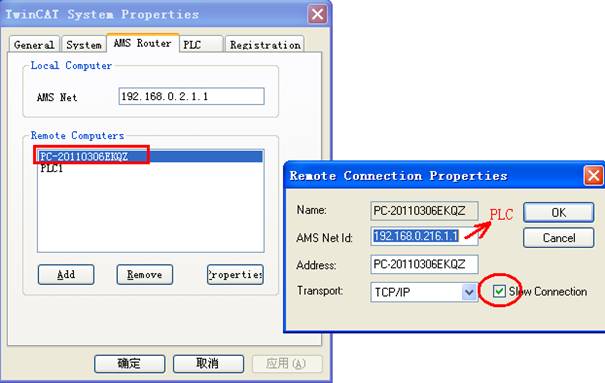

Manually add all remote PLC to the PDA server routes.

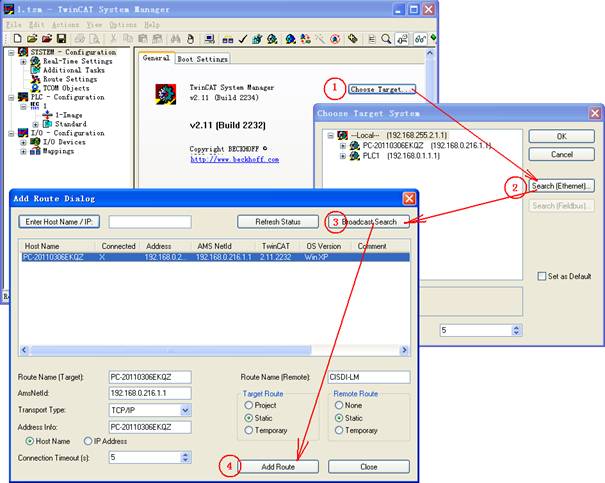

Search for all remote PLCs and add them to the PDA server route, PLCs not searched cannot communicate with PDAServer.

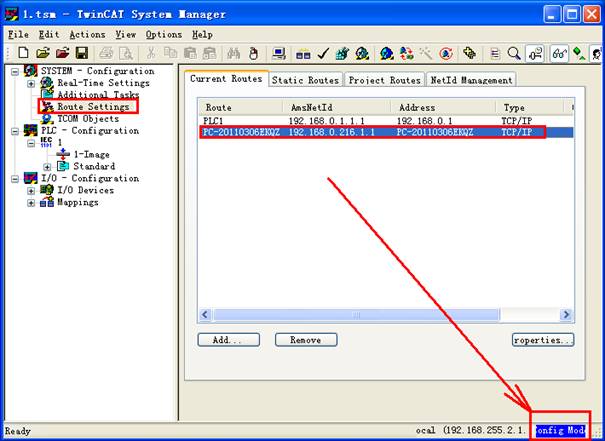

You can see all remote PLCs in Route Settings after they are added.
TwinCAT in the PDA server is under "Config Mode". Config.csv of PDA is below, "169.254.198.216.1.1.801" is AMS NetId and Port。 "ADDRESS" should be same as PLC variables. [3,50CH,10.000ms,192.168.0.210,15,ADS,192.168.0.216,,,,,,,,,,169.254.198.216.1.1.801] No,
Name
,Adr/note
,Unit,Len,Offset
,Gain
,Type ,ALM, CH1=, nBits ,nBits , ,1 ,0.000000,1.000000,BYTE ,0 ,0.000,0.000,0.000 CH2=, wBits ,wBits , ,2 ,0.000000,1.000000,WORD ,0 ,0.000,0.000,0.000 CH3=, dwBits ,dwBits , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH4=, f32AxPos ,f32AxPos , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH5=, f64AxPos ,f64AxPos , ,8 ,0.000000,1.000000,DOUBLE,0 ,0.000,0.000,0.000 CH6=, bEnable ,bEnable , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000 CH7=, sValue ,sValue , ,20
,0.000000,1.000000,STRING,0
,0.000,0.000,0.000 CH8=, ui8Num ,ui8Num , ,1 ,0.000000,1.000000,BYTE ,0 ,0.000,0.000,0.000 CH9=, ui16Num ,ui16Num , ,2 ,0.000000,1.000000,WORD ,0 ,0.000,0.000,0.000 CH10=,ui32Num ,ui32Num , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH11=,
,
, ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH12=,i8Num ,i8Num , ,1 ,0.000000,1.000000,SINT ,0 ,0.000,0.000,0.000 CH13=,i16Num ,i16Num , ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH14=,i32Num ,i32Num , ,4 ,0.000000,1.000000,DINT ,0 ,0.000,0.000,0.000 CH15=,aui32[0] ,aui32[0] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH16=,aui32[1] ,aui32[1] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH17=,aui32[2] ,aui32[2] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH18=,aui32[3] ,aui32[3] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH19=,aui32[4] ,aui32[4] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH20=,aui32[5] ,aui32[5] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH21=,aui32[6] ,aui32[6] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH22=,aui32[7] ,aui32[7] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH23=,aui32[8] ,aui32[8] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH24=,aui32[9] ,aui32[9] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH25=,out8Bit ,out8Bit , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000 CH26=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH27=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH28=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH29=,data1 ,data1
, ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH30=,data2 ,data2
, ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH31=,data3 ,data3
, ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH32=,
,
, ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH33=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH34=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH35=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH36=,MAIN.real1 ,MAIN.real1
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH37=,MAIN.real2 ,MAIN.real2 , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH38=,MAIN.int3[0] ,MAIN.int3[0]
, ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH39=,MAIN.int3[1] ,MAIN.int3[1]
, ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH40=,MAIN.int3[2] ,MAIN.int3[2]
, ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH41=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH42=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH43=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH44=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH45=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH46=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH47=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH48=,
,
, ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH49=,
,
, ,4 ,0.000000,1.000000,REAL ,0
,0.000,0.000,0.000 CH50=,MAIN.abc[2,3],MAIN.abc[2,3], ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 |
|||||
|
|
|||||
|
Apparatus test&Fault diagnosis&Quality analysis |
Millisecond data sampling Real-time data compression Capture signal instantaneous mutation |
||||
|
