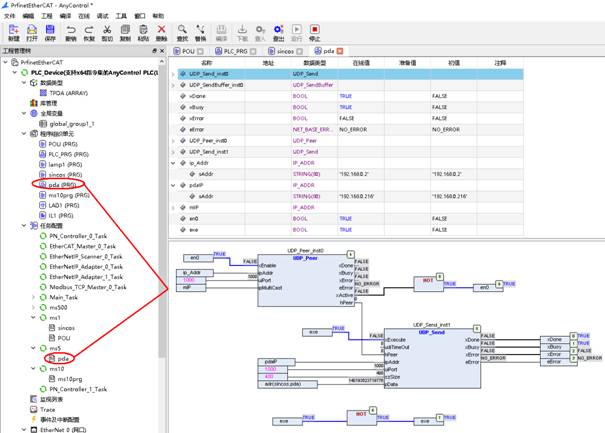

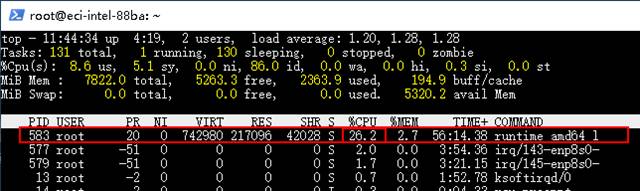

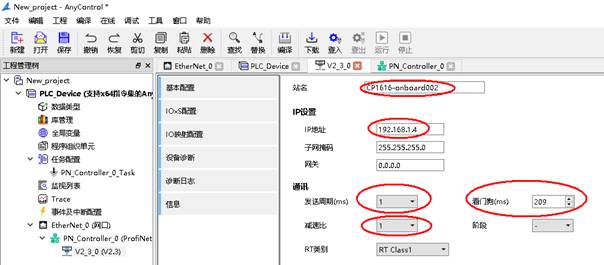

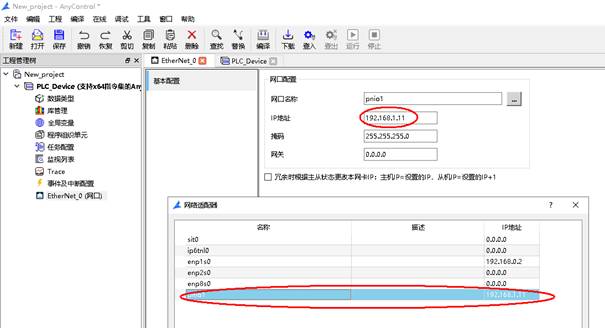

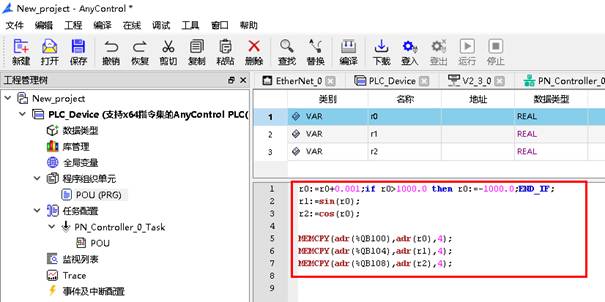

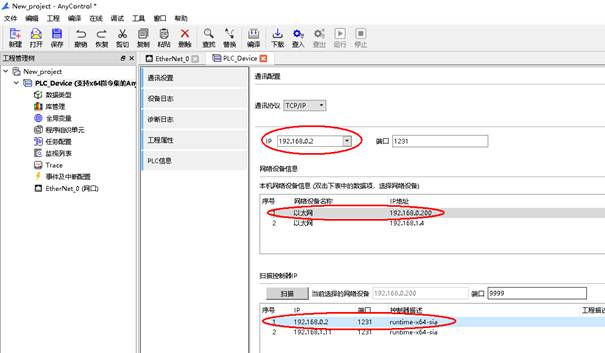

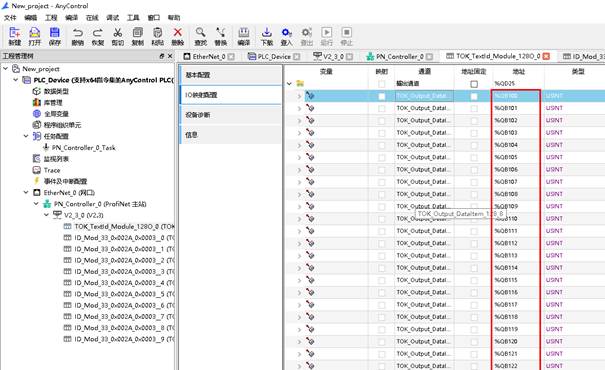

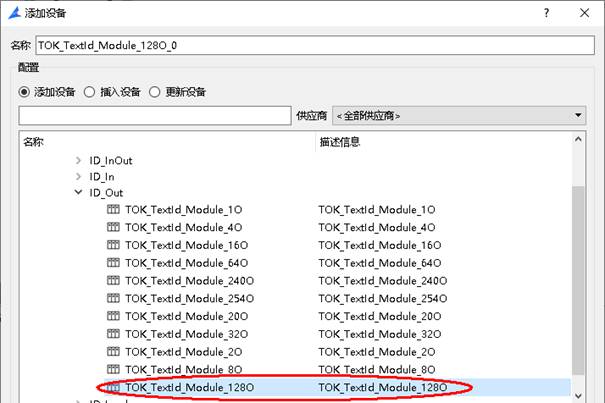

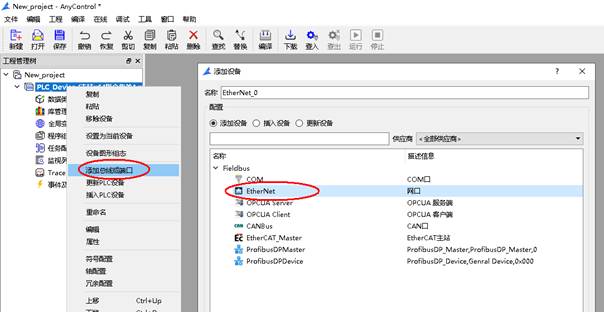

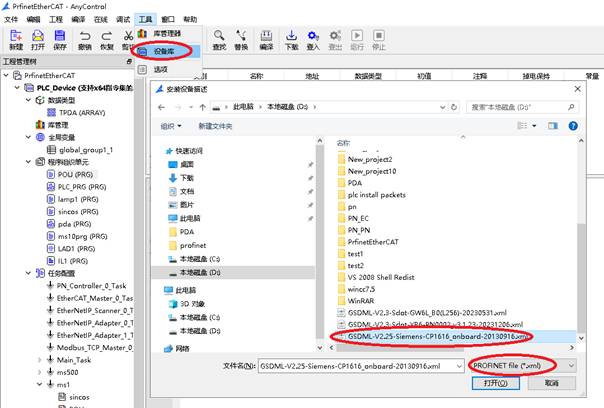

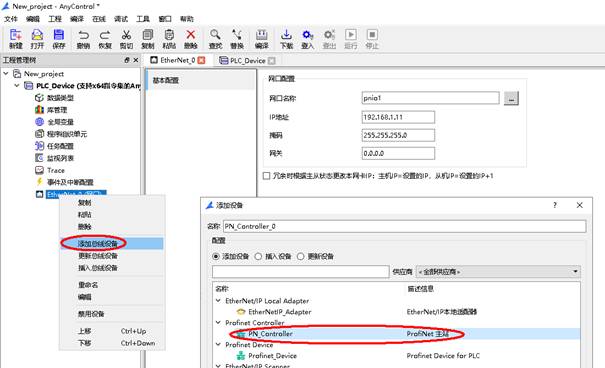

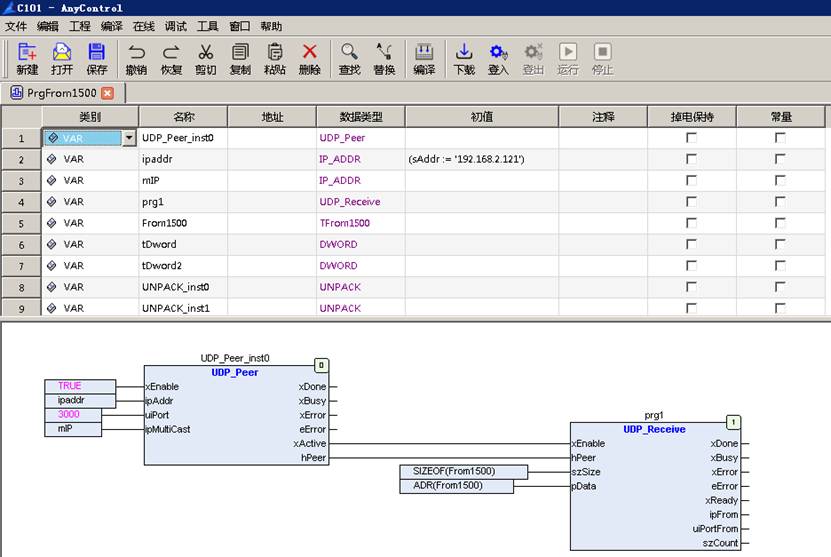

60 AnyControl AnyControl is a universal programming software developed by Beijing AutoStudio Technology co., LTD, similar to CoDeSys. 60.1 Collecting through Profinet Add CP-1616 driver. Select the network port connecting the PLC and the computer for the new construction project. Add Profinet master station. Add CP-1616 slave station, set the slave station IP and station name, set the 1ms transmission cycle as follows, and set the watchdog value as large as possible. Add 128 byte IO modules, up to a maximum of 11 with a total of 1408 bytes. The addresses allocated to the IO module are shown in the following figure. Write the data to be collected to the corresponding address through MEMCPY. The corresponding configuration Config.csv for PDA is as follows, with a data source type of 8, 352 REALs of 1408 bytes, CP1616-onboard002 as the slave name, and 1 as the Profinet bus refresh time. [3000,352CH,1.000ms,192.168.1.11,8,CP1616-onboard002,192.168.1.4,1] Connect to PLC remotely and check the runtime load, with preferably not exceeding 50%. 60.2 Collection via UDP The PDA data source type is 25, and one connection can collect 1460 bytes. The TPDA data type can be defined according to the actual data type. The following figure shows the PDA configuration Config.csv for collecting 100 REALs, with a 5ms cycle and sending data once every 10ms. [1000,100CH,10.000ms,192.168.0.2,25,Test1,192.168.0.216]
