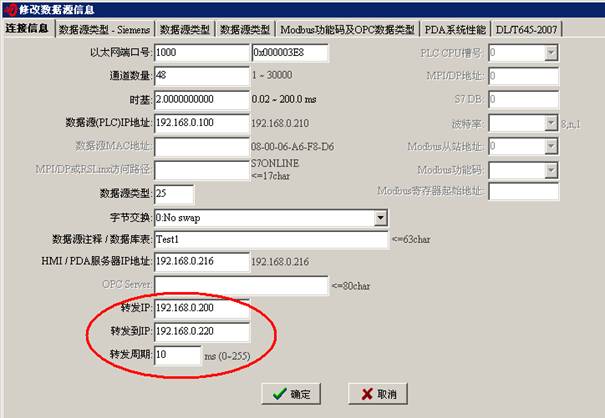

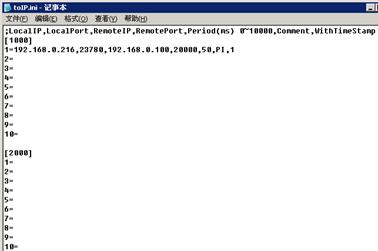

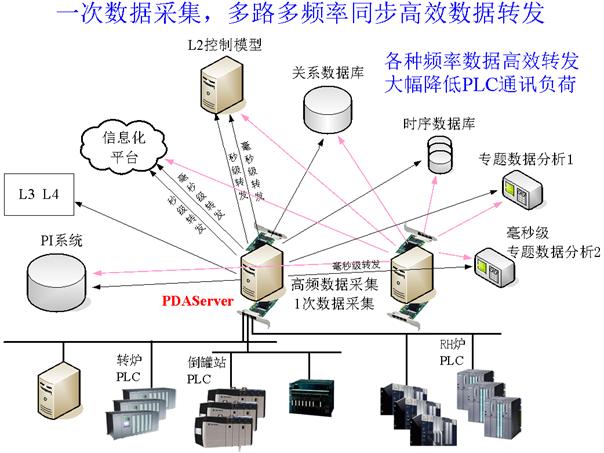

55 High speed data forwarding 55.1 High speed data forwarding - connection This task is executed by PDAServer.exe, it may achieve millisecond level forwarding. The PDA server adds a multi port network card. In principle, the data required by other systems is not directly connected to the L1 controller, but is obtained through PDA forwarding. Different network segments are forwarded through different network ports, which can save a lot of PLC resources. The first forwarding method is set through Config.csv, as shown in the figure below, with the forwarding IP, forwarding destination IP, and forwarding cycle set. This method can only forward to one place. Figure 1 Setting up high-speed data forwarding to a location The second method is set through toIP. ini, which allows for high-speed forwarding to up to 10 locations, forward the received data at once when the forwarding cycle is 0. Figure 2 Setting up high-speed data forwarding to multiple locations 55.2 High speed data forwarding - hybrid This task is executed by Retransfer.exe, the forwarding period is an integer multiple of 10ms. Retransfer.ini is the configure file. Type 0: Combine data from different connection channels and send to the destination IP using UDP. The configuration example is as follows, the period is used to set the period (ms). Type 1: Retransfer all data of the connection, the efficiency is lower than the previous method. [ToL2] style=0,挑变量转发 WithTimeStamp=1,是否带时间戳如2023-12-23 12:32:19.200 targetIP=192.168.0.220 targetPort=3010 period=20 1=1000,1 2=1000,2 3=1000,3 4=1000,36 5=1000,37 6=1000,4 7=2000,3 8=2000,8 9=2000,32 10=3000,12 11=3000,20 12=4000,2 13=4000,3 [ToL3] style=0,挑变量转发 WithTimeStamp=0 targetIP=192.168.0.221 targetPort=3020 period=25 1=1000,10 2=1000,20 3=1000,30 4=1000,22 5=2000,31 6=2000,2 7=2000,32 8=3000,11 9=3000,20 10=4000,1 11=4000,2 [ToQuality] style=1,转发整个连接 WithTimeStamp=0 targetIP=192.168.0.222 targetPort=3050 period=50 1=1000 [ToDevice] style=1,转发整个连接 WithTimeStamp=0 targetIP=192.168.0.223 targetPort=3060 period=50 1=3000
