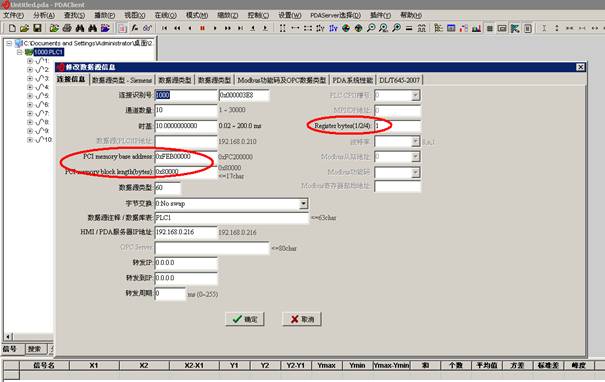

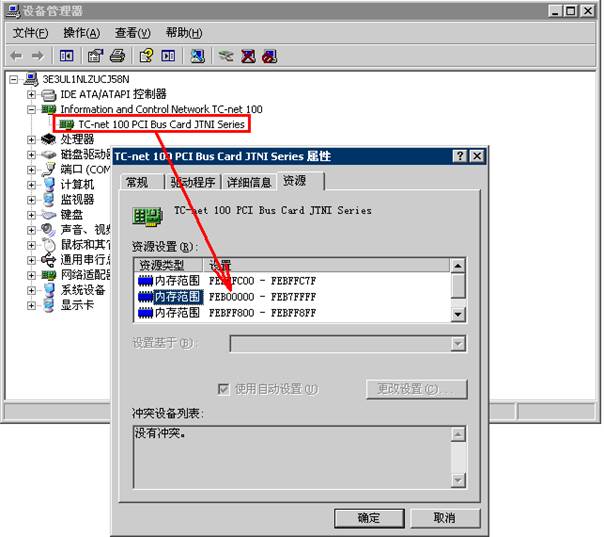

50 Collecting PCI/PCIe card data The data source type is 60, and the physical memory base address and memory size are shown in the figure below. The register length can be 1, 2, or 4 bytes. A PCI card has three memory areas, with manufacturer configuration information in the front and back, and a data area in the middle, as shown in the following figure. The corresponding configuration in PDA is shown in the following figure: An example of Config.csv configuration is as follows: [1000,10CH,10.000ms,,60,PLC1,192.168.0.216,,1,,,,0xFEB00000,0x80000] No, Name,Adr/note,Unit,Len,Offset ,Gain ,Type,ALM,HH ,HI ,LO CH1=, ,6782 , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH2=, ,12 , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH3=, ,32106 , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH4=, , , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH5=, , , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH6=, , , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH7=, , , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH8=, , , ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000 CH9=, ,66.0 , ,4 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000 CH10=, ,68.3 , ,4 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000
