Process Data Acquisition – PDA -- Detailed analysis of quality manage&industrial big data sources			高速数采方案 High speed data acquisition scheme	系统 System	Contact us
1 S7-1500 and slave drop data collection scheme	31 Beckhoff Ads
2 S7-400 Ethernet high speed fixed period 2ms	32 EtherCAT
3 S7-300 Ethernet high speed fixed period	33 RS232 / RS485
4 Profinet	34 Rockwell AB PLC
5 S7-400/300/TDC/FM458 Ethernet Variable Access	35 OPC / OPC Ua
6 Standard Ethernet UDP	36 Auxiliary transmission S120
7 Standard Ethernet TCP	37 Main driver system SL150
8 S7 PLC Tools for program debugging - pdaTools	38 B&R - Robot
9 S7-400/300/TDC/FM458 Symbol Variable DB block	39 MITSUBISHI MC protocol - format 4
10 S7-400/300 iso(MAC address)	40 MITSUBISHI MELSECT – QnA 3E
11 S7-300/400 standard ethernet	41 MITSUBISHI Q-Series UDP
12 TDC Ethernet	42 Smart meter DL/T645-2007 protocol
13 S7-1500/1200	43 S7-200 smart
14 MPI/DP variable access	44 Automobile CAN-bus
15 Profibus-DP	45 Alstom HPCi VMIVME 7750 - UDP
16 RFM(Reflective Memory)	46 Collecting KEPServer data through Opc Ua
17 CoDeSys	47 Collecting S7-1500 data through Opc Ua
18 Interface Module	48 Listen to all data on the Profibus bus and collect it
19 Simotion D	49 ABB main drive ACS6000
20 EGD(Ethernet Global Data)	50 Collecting PCI/PCIe card data
21 Modbus Register address	51 Collect TC-net network data
22 Modbus TCP Memory block	52 Collect UDP data forwarded by Tc-net
23 Modbus TCP Register address	53 Collect domestic PLC data
24 FM458 Profibus-DP gateway	54 Other data collection methods
25 GE Fanuc SRTP/ SNPX	55 High speed data forwarding
26 Wago	56 PDA system scheme for converter, RH furnace, LF furnace in steel plant
27 MOOG PLC	57 Continuous Casting Hydraulic Vibration PDA System
28 ABB PLC	58 Hot rolling TDC GDM.PDA system renovation
29 Beckhoff Ethernet	59 USB HID
30 Bechhoff Realtime Ethernet	60 AnyControl

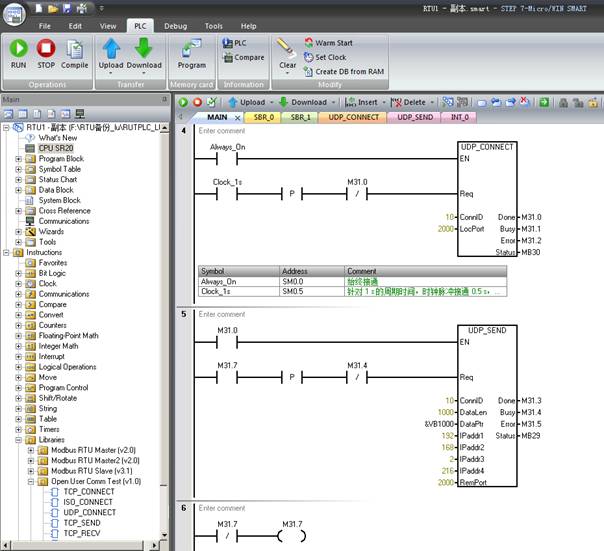

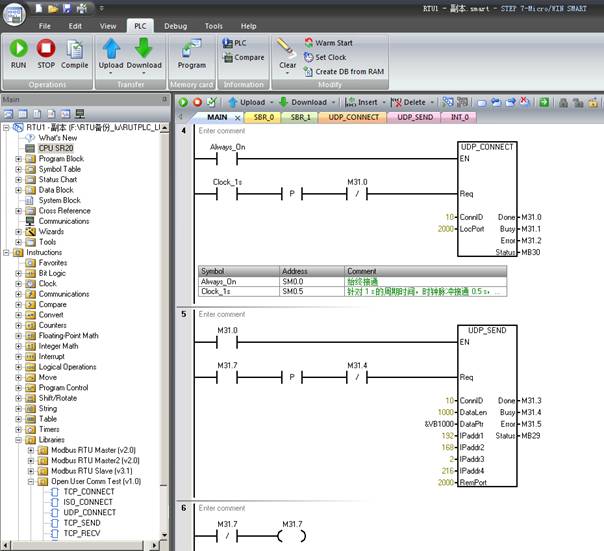

43 S7-200 smart 43.1 Standard ethernet UDP mode Package the data and send it to the PDA server by udp_send. 43.2 Read PLC memory address directly The data source type is 19, Byte swapping should be noted, and the memory area can be collected as follows: I: Process image input I0.1 IB4 IW7 ID20 Q: Process image output Q1.1 QB5 QW14 QD28 V: Variable memory V10.2 VB16 VW100 VD2136 M: Marker memory M26.7 MB0 MW11 MD20 S: Sequential control relay S3.1 SB4 SW7 SD14 SM:Special memory SM0.1 SMB86 SMW300 SMD1000 AI:Analog input AIW4 must be even AQ:Analog output AQW4 must be even C: Counter memory uint24 T: Timer memory uint40 HC:High speed counter uint40
Apparatus test&Fault diagnosis&Quality analysis		Millisecond data sampling Real-time data compression Capture signal instantaneous mutation
