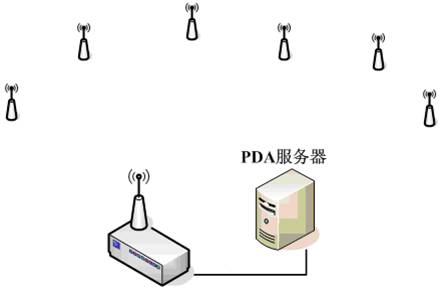

54 Other data collection methods 54.1 20kHz data acquisition scheme Full process data storage. 54.2 Wireless Data Collection 54.3 Real time data files The data source type is 35, the file names of each connection are their identification numbers, the data refresh rate is in seconds, and it can be used for wide area networks. 54.4 Collecting Memory Data The location of the memory block is determined by the memory file mapping CreateFileMapping.
Apparatus test&Fault diagnosis&Quality analysis		Millisecond data sampling Real-time data compression Capture signal instantaneous mutation
