Process Data Acquisition – PLC -- Detailed analysis of quality manage&industrial big data sources			高速数采方案 High speed data acquisition scheme	系统 System	Contact us
1 S7-1500 and slave drop data collection scheme	31 Beckhoff Ads
2 S7-400 Ethernet high speed fixed period 2ms	32 EtherCAT
3 S7-300 Ethernet high speed fixed period	33 RS232 / RS485
4 Profinet	34 Rockwell AB PLC
5 S7-400/300/TDC/FM458 Ethernet Variable Access	35 OPC / OPC Ua
6 Standard Ethernet UDP	36 Auxiliary transmission S120
7 Standard Ethernet TCP	37 Main driver system SL150
8 S7 PLC Tools for program debugging - pdaTools	38 B&R - Robot
9 S7-400/300/TDC/FM458 Symbol Variable DB block	39 MITSUBISHI MC protocol - format 4
10 S7-400/300 iso(MAC address)	40 MITSUBISHI MELSECT – QnA 3E
11 S7-300/400 standard ethernet	41 MITSUBISHI Q-Series UDP
12 TDC Ethernet	42 Smart meter DL/T645-2007 protocol
13 S7-1500/1200	43 S7-200 smart
14 MPI/DP variable access	44 Automobile CAN-bus
15 Profibus-DP	45 Alstom HPCi VMIVME 7750 - UDP
16 RFM(Reflective Memory)	46 Collecting KEPServer data through Opc Ua
17 CoDeSys	47 Collecting S7-1500 data through Opc Ua
18 Interface Module	48 Listen to all data on the Profibus bus and collect it
19 Simotion D	49 ABB main drive ACS6000
20 EGD(Ethernet Global Data)	50 Collecting PCI/PCIe card data
21 Modbus Register address	51 Collect TC-net network data
22 Modbus TCP Memory block	52 Collect UDP data forwarded by Tc-net
23 Modbus TCP Register address	53 Collect domestic PLC data
24 FM458 Profibus-DP gateway	54 Other data collection methods
25 GE Fanuc SRTP/ SNPX	55 High speed data forwarding
26 Wago	56 PDA system scheme for converter, RH furnace, LF furnace in steel plant
27 MOOG PLC	57 Continuous Casting Hydraulic Vibration PDA System
28 ABB PLC	58 Hot rolling TDC GDM.PDA system renovation
29 Beckhoff Ethernet	59 USB HID
30 Bechhoff Realtime Ethernet	60 AnyControl

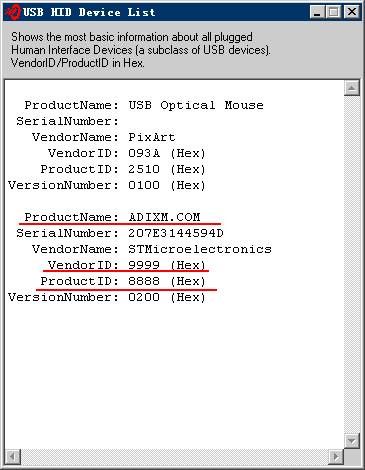

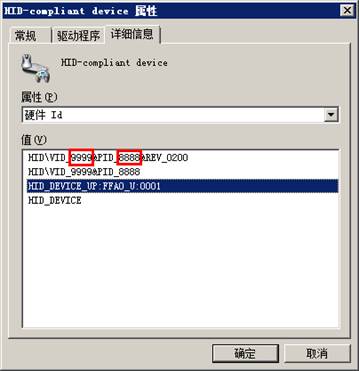

59 USB HID The USB HID class is a standard device class for USB devices, which includes a wide range of devices. HID devices are defined as devices that belong to human-computer interaction operations, used to control some aspects of computer operations, such as USB mice, USB keyboards, USB game joysticks, etc. However, HID devices do not necessarily need to have a human-machine interface. Any device that meets the HID category specification is an HID device. One advantage of USB HID devices is that the operating system comes with HID class drivers, and users do not need to develop drivers. They can communicate using API system calls. Low speed devices (LS): maximum packet length of 8 bytes. Full speed device (FS): maximum packet length of 64 bytes. High speed equipment (HS): maximum packet length of 1024 bytes, STM32+USB3300(Microchip) is achievable. The data source type is 69, usually a full speed device, which is a powerful tool for debugging microcontroller programs. PDA supports automatic recovery after plugging and unplugging, it is necessary to know the USB device name, Vendor ID (0x9999 in the following figure), and Product ID (0x8888 in the following figure) when configuring a PDA.
Apparatus test&Fault diagnosis&Quality analysis		Millisecond data sampling Real-time data compression Capture signal instantaneous mutation
友情链接 百度 腾讯 新浪 网易 搜狐 凤凰 淘宝 京东 中国自动化网 中国工控网 西门子 罗克韦尔 华军软件园 天空软件站 非凡软件站 多多软件站 携程 知乎 中国五矿 中冶集团 中冶赛迪 中冶南方 中冶京诚 中冶华天 中冶长天 中冶北方 中冶焦耐 中国宝武 宝信 宝钢 武钢 鞍钢 河钢 首钢 沙钢 山钢 涟钢 鄂ICP备2025092850号 版权所有©Copyright:2025-2035. 经纬铭月科技（武汉）有限公司

Develop communication protocol, Customized analysis function, XinChuang domestic obsession

PDAServer PDAClient
