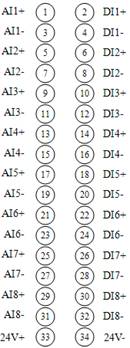

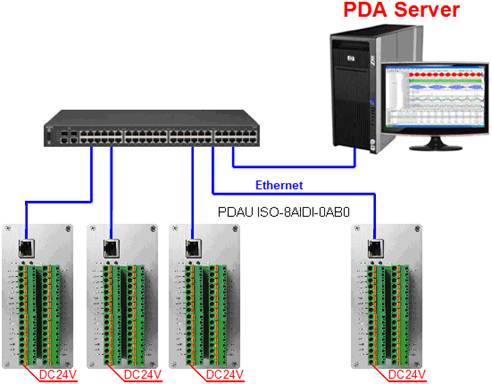

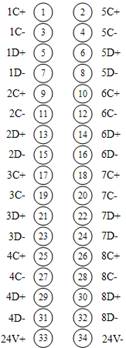

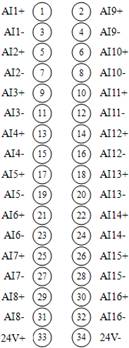

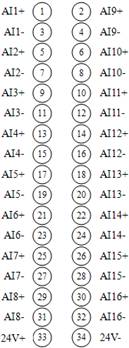

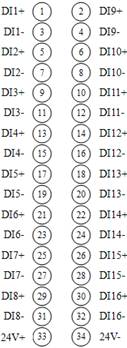

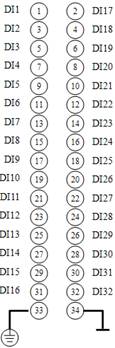

18 Interface Module 18.1 8 channel full isolated analog and digital input module Order: PDAU ISO-8AIDI-0AB0, Sample period may be 0.5ms. The standard Config.csv is below. [1000,16CH,2.000ms,192.168.0.210,25S,PDA ISO-8AIDI,192.168.0.216] No, Name,Adr/note ,Unit,Len,Offset ,Gain ,Type,ALM,HH ,HI ,LO ,LL ,Opr,FFS CH1=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH2=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH3=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH4=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH5=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH6=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH7=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH8=, ,-5V~0~+5V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 , CH9=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , CH10=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , CH11=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , CH12=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , CH13=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , CH14=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , CH15=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , CH16=, , ,V ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 , The figure below is a PDA scheme with "PDAU ISO-8AIDI-0AB0" module. 18.2 16 channel full isolated analog input module Order: PDAU ISO-16AI-0AB0, Sample period may be 0.5ms. The standard Config.csv is below. [1000,16CH,2.000ms,192.168.0.210,25S,PDAU-16AI,192.168.0.216] No, Name,Adr/note ,Unit,Len,Offset ,Gain ,Type,ALM,HH ,HI ,LO ,LL ,Opr CH1=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH2=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH3=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH4=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH5=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH6=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH7=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH8=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH9=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH10=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH11=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH12=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH13=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH14=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH15=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 CH16=, ,-10V~0~+10V,V ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000,0.000,0.000,0 18.3 16 channel full isolated digital input module Order: PDAU ISO-16DI-0AB0, Sample period may be 0.5ms. The standard Config.csv is below. [1000,16CH,2.000ms,192.168.0.210,25S,PDAU-16DI,192.168.0.216] No, Name,Adr/note,Unit,Len,Offset ,Gain ,Type,ALM,HH ,HI ,LO ,LL ,Opr CH1=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH2=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH3=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH4=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH5=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH6=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH7=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH8=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH9=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH10=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH11=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH12=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH13=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH14=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH15=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH16=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 18.4 16 channel isolated analog and digital input module Order: PDAU ISO-16AIDI-0AB0, PDA sample period may be 0.5ms, no isolation between channels. 18.5 32 channel isolated digital input module PDAU ISO-32DI-0AB0 is 32 channels and isolated by photoelectricity, PDA sample period may be 0.5ms, no isolation between channels. The standard Config.csv is below. [1000,32CH,2.000ms,192.168.0.210,25,PDAU-32DI,192.168.0.216] No, Name,Adr/note,Unit,Len,Offset ,Gain ,Type,ALM,HH ,HI ,LO ,LL ,Opr CH1=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH2=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH3=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH4=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH5=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH6=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH7=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH8=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH9=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH10=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH11=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH12=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH13=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH14=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH15=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH16=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH17=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH18=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH19=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH20=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH21=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH22=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH23=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH24=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH25=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH26=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH27=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH28=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH29=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH30=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH31=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 CH32=, , , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000,0.000,0 18.6 8 Channel SSI module There are 8 SSI channels in PDAU SSI-8CH-0AB0, its speed is 250KHz/500KHz/1MHz/2MHz, data length is 16~32 bits. PDA sample period may be 0.5ms. 18.7 Thermal resistor / Thermocouple / Special signal Ellipsis.
