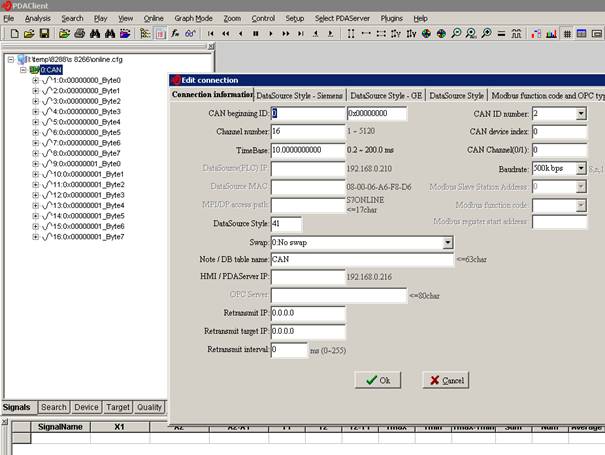

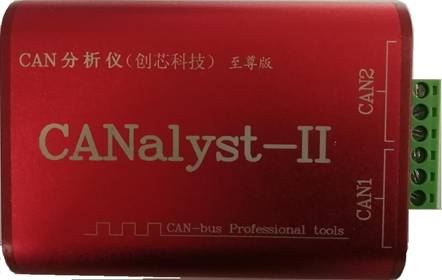

44 Automobile CAN-bus Adopting CANalyst-II (Chuangxin Technology), it can be connected to 2-way CAN bus. The data source type is 41, and both standard and extended IDs can be collected. The default configuration is 8 bytes and 8 Byte points per ID. The main content of the CAN module setting includes the starting ID number, the number of IDs continuously collected, the serial number of CAN devices, channel number, baud rate, and working mode. It is recommended to select the frame listening mode to only collect data without sending commands.
