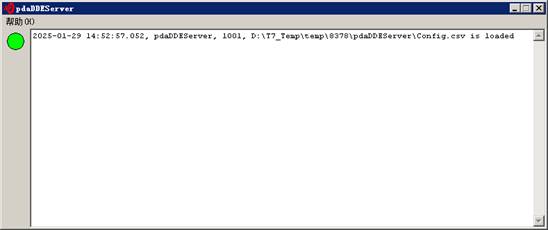

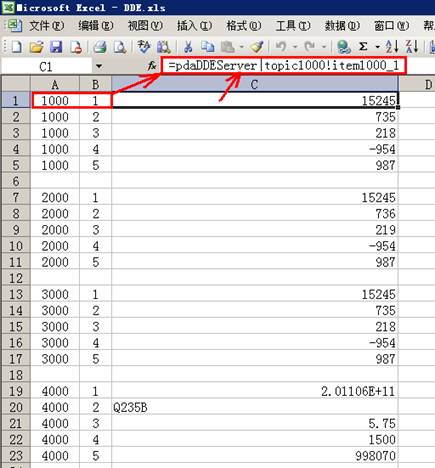

61 DDE data interface for displaying real-time data in Excel pdaDDEServer.exe writes the real-time value of each channel into the DDE item, with each connection corresponding to a topic and each point corresponding to an item. Method 1: Copy pdaDDEServer.exe into the PDA server directory at D:\PDA, then on the client side, open the shared directory of the PDA server at D:\PDA and run pdaDDEServer.exe. Method 2: Map the shared directory of the PDA server located at D:\PDA to the client's W: drive, and run the client's pdaDDEServer.exe, the method is recommended for use. The operation interface of pdaDDEServer.exe is as follows: Open Excel on the client side, fill in the corresponding item, and the real-time value will be displayed, as shown in the figure below.
