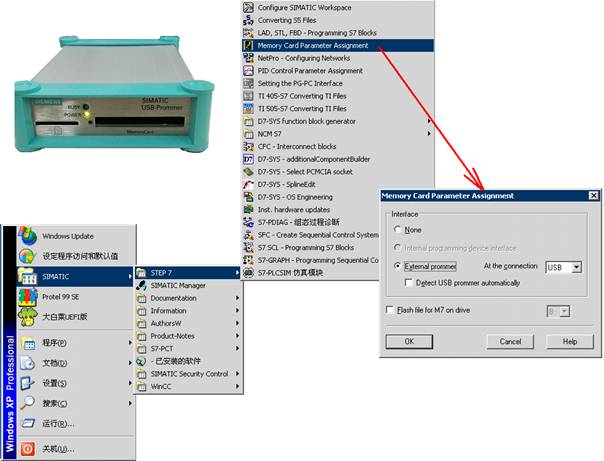

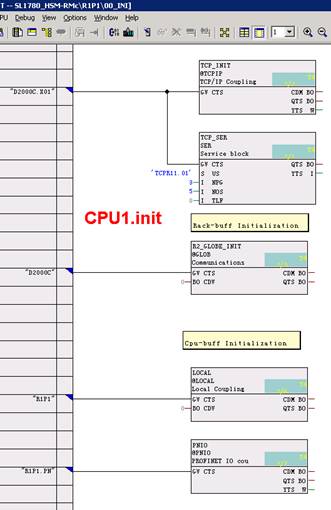

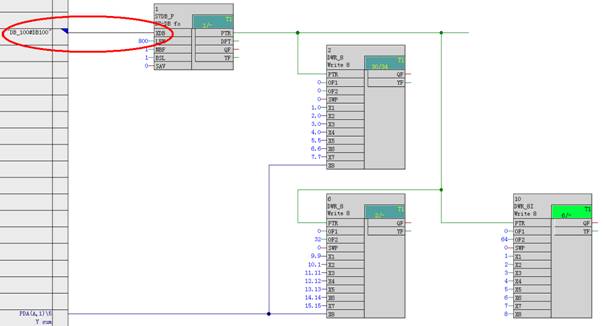

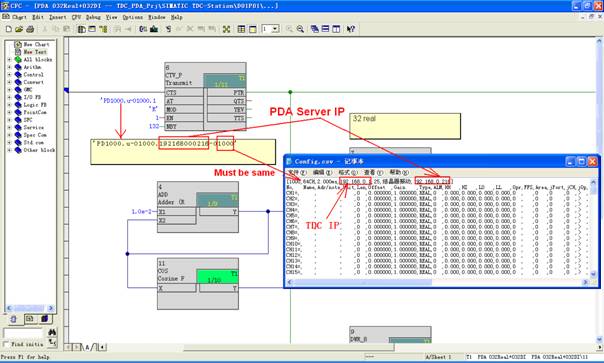

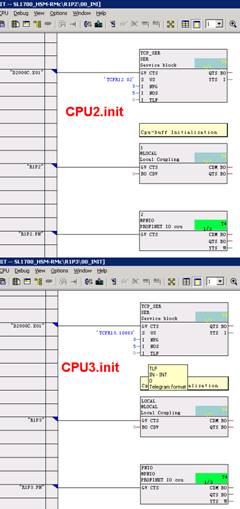

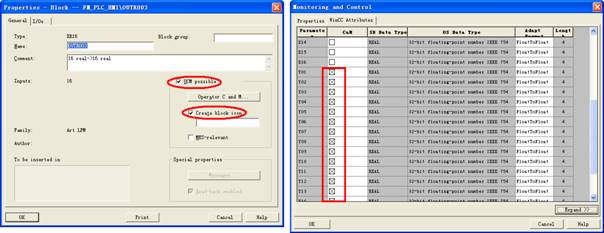

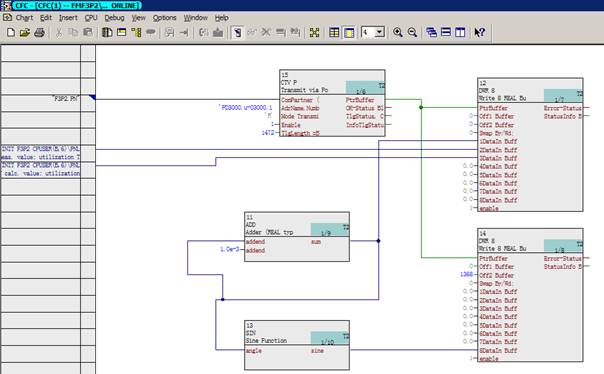

12 TDC Ethernet TDC CPU555 onboard ethernet port performance is poor, UDP is suggested for acquisition by CP51M1. the memory card is compatible with the S7-300, and downloading multiple times can be successful. 12.1 CTV_P mode Ethernet-UDP may be used, see section 4.3, Data source type is 25. The following configuration is acquisition of 32REAL+32BIT; the rest may be deduced by analogy, CP51M1's PDA sample period may be 2ms. Ethernet-TCP may be also used, see section 4.4. CPU555 onboard ethernet may be 1472bytes/8ms, CPU's load rate may be increased by about 2%. Note the initialization cycle: 32ms≤ TA≤ 256ms. Select the card writer. 12.2 Read DB block mode Write signals to DB block appointed by S7DB_P, PDAServer directly read the DB; the other is same as section 4.8, PDA sample period is 10ms~100ms level. 12.3 Address book mode Select WinCC attributes of collected CFC pin, address book will be generated after compiled, or specify DB number by S7DB_P, fill address into Config.csv, data source type is 21, the other is same section 4.8. Swap byte should be attended. PDA sample period is 10ms~100ms level. [1000,16CH,10.000ms,192.168.0.23,21,txtNote,192.168.0.216,3] No, Name ,Adr/note ,Unit,Len,Offset ,Gain ,Type,ALM,HH ,HI CH1=, DB1031.DBD24576,DB1031.DBD24576, ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000 CH2=, DB1031.DBD24580,DB1031.DBD24580, ,4 ,0.000000,1.000000,REAL,0 ,0.000,0.000 ……
