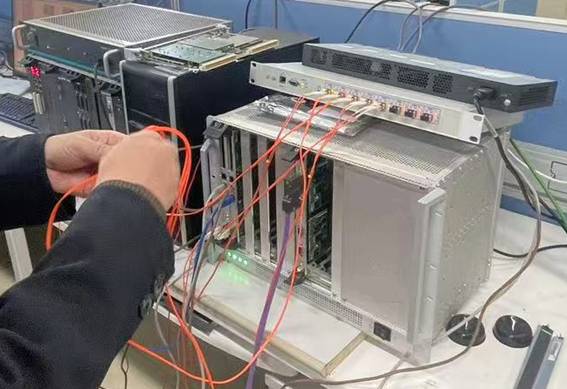

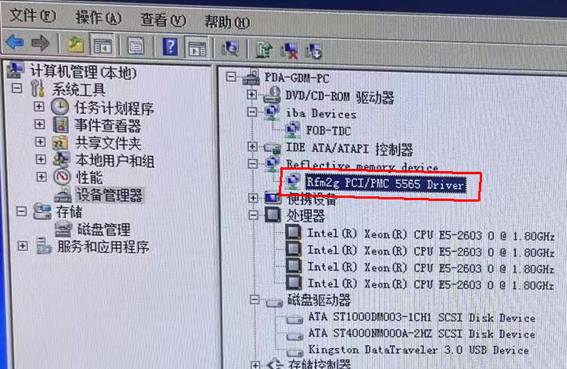

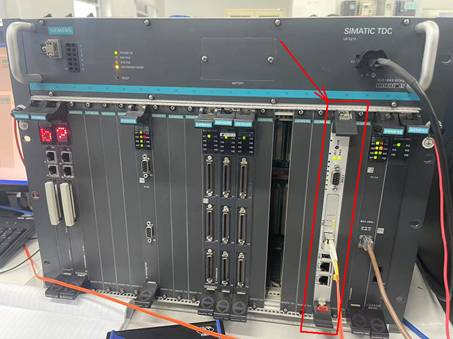

66 Acquiring TDC Data via Reflective Memory Network Siemens TDC controllers support the GDM network, but it is expensive and has limited acquisition points. Domestic manufacturers have developed reflective memory network cards that support the TDC VME bus, as shown in the figure below. In CFC, the card is initialized, read from, and written to using the three functional blocks RFMINI, RFMWR, and RFMRD. The figure below shows a network composed of a reflective memory switch, TDC, and a domestic high-performance controller. A PCIe5565 or compatible network card can be installed in the PDA server. For other details, please refer to Section 4.18.
