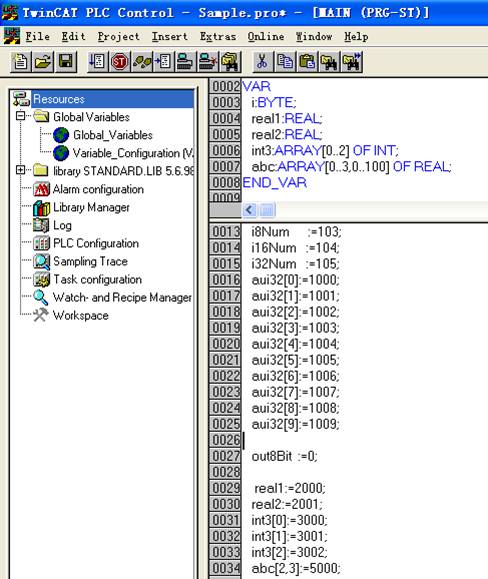

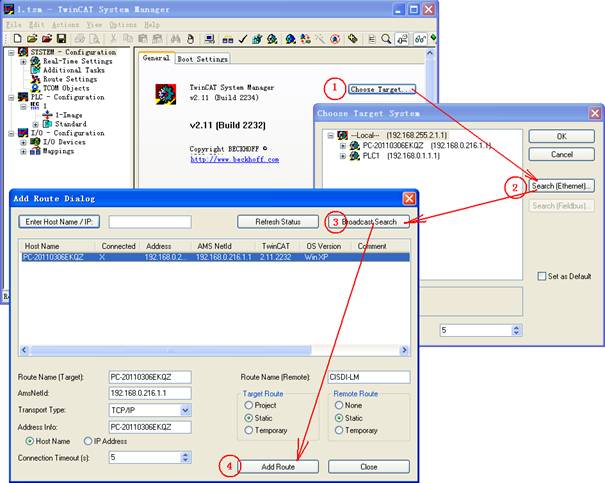

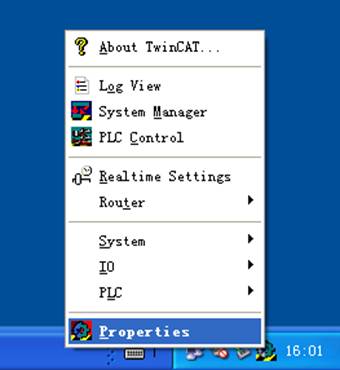

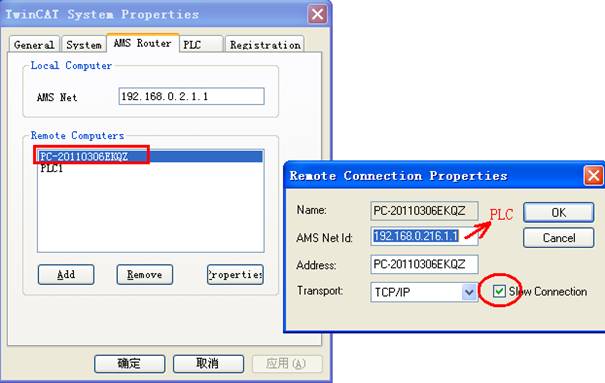

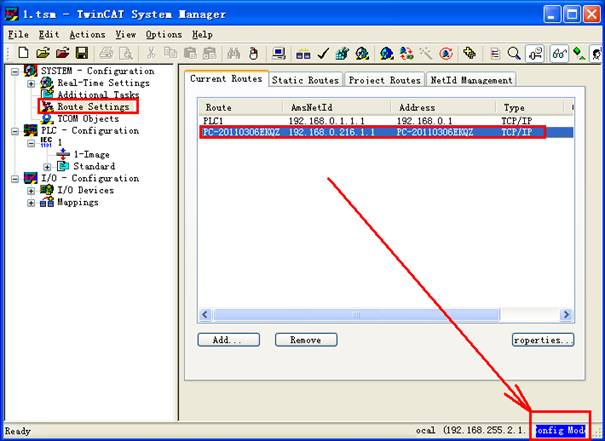

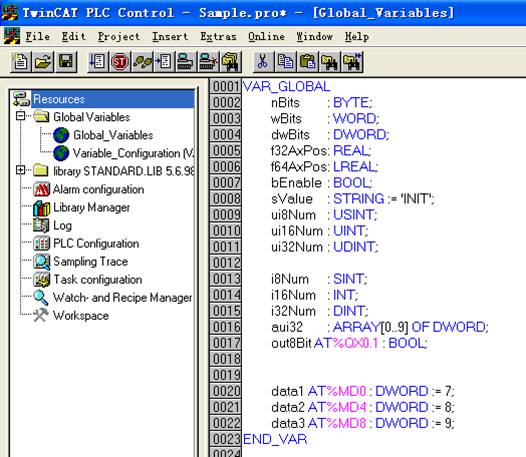

31 Beckhoff Ads 数据源类型为15，有效采集周期不小于10ms。 不支持多字节char数据类型，请用String替代。 PLC中修改AMS Net(CX控制器可连上显示器、鼠标和键盘)。 下图为PLC程序中定义的变量。 PDA服务器中把所有远程PLC手动添加到路由中。 PDA服务器中搜索所有远程PLC并添加到路由中，搜索不到的PLC将不能与PDAServer通讯。 添加后在Route Settings中可以看见所有远程PLC。 PDA服务器中TwinCAT在"Config Mode"下。 PDA组态Config.csv如下，"169.254.198.216.1.1.801"为AMS NetId和Port。 ADDRESS栏要与PLC变量名一致。 [3,50CH,10.000ms,192.168.0.210,15,ADS,192.168.0.216,,,,,,,,,,169.254.198.216.1.1.801] No, Name ,Adr/note ,Unit,Len,Offset ,Gain ,Type ,ALM,HH ,HI ,LO CH1=, nBits ,nBits , ,1 ,0.000000,1.000000,BYTE ,0 ,0.000,0.000,0.000 CH2=, wBits ,wBits , ,2 ,0.000000,1.000000,WORD ,0 ,0.000,0.000,0.000 CH3=, dwBits ,dwBits , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH4=, f32AxPos ,f32AxPos , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH5=, f64AxPos ,f64AxPos , ,8 ,0.000000,1.000000,DOUBLE,0 ,0.000,0.000,0.000 CH6=, bEnable ,bEnable , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000 CH7=, sValue ,sValue , ,20 ,0.000000,1.000000,STRING,0 ,0.000,0.000,0.000 CH8=, ui8Num ,ui8Num , ,1 ,0.000000,1.000000,BYTE ,0 ,0.000,0.000,0.000 CH9=, ui16Num ,ui16Num , ,2 ,0.000000,1.000000,WORD ,0 ,0.000,0.000,0.000 CH10=,ui32Num ,ui32Num , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH11=, , , ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH12=,i8Num ,i8Num , ,1 ,0.000000,1.000000,SINT ,0 ,0.000,0.000,0.000 CH13=,i16Num ,i16Num , ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH14=,i32Num ,i32Num , ,4 ,0.000000,1.000000,DINT ,0 ,0.000,0.000,0.000 CH15=,aui32[0] ,aui32[0] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH16=,aui32[1] ,aui32[1] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH17=,aui32[2] ,aui32[2] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH18=,aui32[3] ,aui32[3] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH19=,aui32[4] ,aui32[4] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH20=,aui32[5] ,aui32[5] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH21=,aui32[6] ,aui32[6] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH22=,aui32[7] ,aui32[7] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH23=,aui32[8] ,aui32[8] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH24=,aui32[9] ,aui32[9] , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH25=,out8Bit ,out8Bit , ,1 ,0.000000,1.000000,BIT ,0 ,0.000,0.000,0.000 CH26=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH27=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH28=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH29=,data1 ,data1 , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH30=,data2 ,data2 , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH31=,data3 ,data3 , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH32=, , , ,4 ,0.000000,1.000000,DWORD ,0 ,0.000,0.000,0.000 CH33=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH34=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH35=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH36=,MAIN.real1 ,MAIN.real1 , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH37=,MAIN.real2 ,MAIN.real2 , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH38=,MAIN.int3[0] ,MAIN.int3[0] , ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH39=,MAIN.int3[1] ,MAIN.int3[1] , ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH40=,MAIN.int3[2] ,MAIN.int3[2] , ,2 ,0.000000,1.000000,INT ,0 ,0.000,0.000,0.000 CH41=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH42=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH43=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH44=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH45=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH46=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH47=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH48=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH49=, , , ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000 CH50=,MAIN.abc[2,3],MAIN.abc[2,3], ,4 ,0.000000,1.000000,REAL ,0 ,0.000,0.000,0.000
