5 DBU - Database
system and Upgrade tools
The database supports SQL statements and has good openness. The Database Upgrade tool upgrades the high-frequency data collected by PDA to a relational and sequential database, achieving the unity of PDA collection points and database table names, field names, and data. It supports offline and online methods. 5.1 PDA → SQLServer Realtime Data
dbUpgradeRt.ini configures the trigger conditions for real-time database writing and which variables are written to which database table. PDA can save the collected data to relational databases such as SQL Server/MySQL/Oracle in real-time according to the configured number of cycles through dbUpgradeRtA.exe, dbUpgradeRtB.exe~dbUpgradeRtJ.exe. There are seven triggering methods for data storage as shown in the following figure. During the first run, the database table is automatically created according to the configuration of dbUpgradeRtA.ini, dbUpgradeRtB.ini~dbUpgradeRtJ.ini. After the configuration changes, the table structure is manually modified according to the ini configuration.

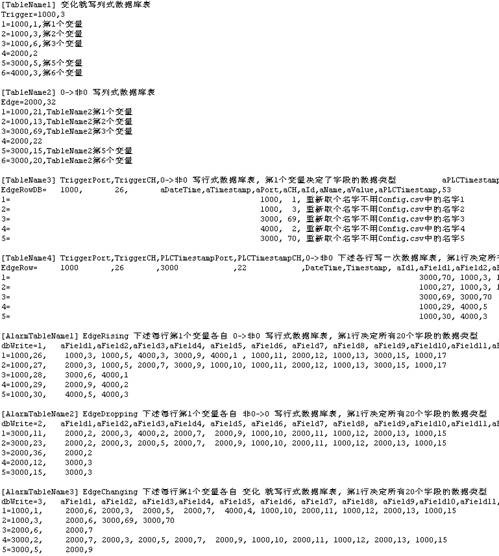

Figure 5.1 Seven triggering methods for real-time database writing 5.2 PDA → SQLServer Historical Data
dbUpgrade.exe can upscale historical data to a relational database, and automatically create database tables by pressing Config.csv during the first run. It can be downscaled and upscaled.

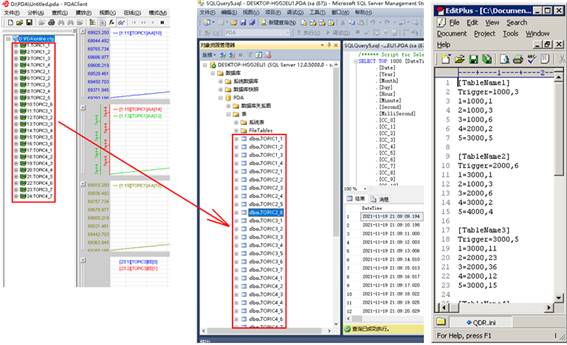

Figure 5.2 PDA configuration upgrade to relational database 5.3 PDA → InfluxDB realtime data
dbUpgradeRtTS.ini configures the trigger conditions for real-time database writing and which variables are written to which database table. dbUpgradeRtTS.exe calls influx_Rt.exe writes the database table in real-time according to the configuration file dbUpgradeRtTS.ini when one of the seven triggering conditions is met, or unconditionally once per second, with the ability to write tens of thousands of points per second. It supports triggering frequency at the 0.1 second level, and the field name written to influx should be correctly configured in the FFS column of Config.csv. The IP and file path configuration is shown in the following figure. dbUpgradeRtTSSr.exe can update files that have not been uploaded in the past 7 days, scan every 12 hours, and automatically delete temporary files 10 days ago.

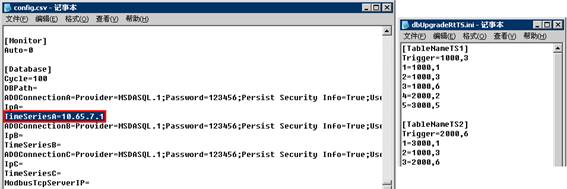

Figure 5.3 Configuration of InfluxDB IP and Collection Points in PDA 5.4 Automatic
report
The automatic reporting system is a big data analysis and statistical tool. Provide sufficient support for various reporting tools such as Microsoft Power BI and Fansoft through database and PDA underlying technology.

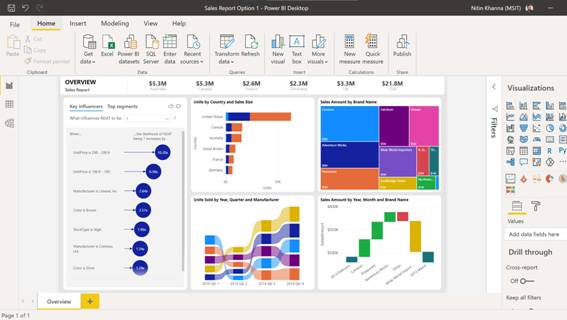

Figure 5.4 Power BI Report Example

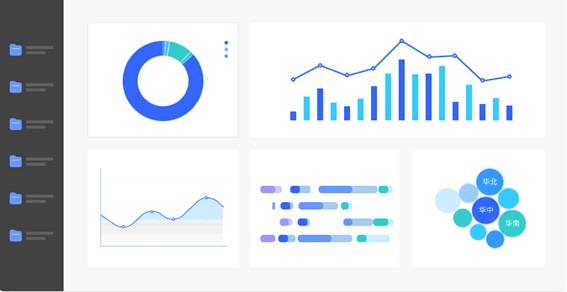

Figure 5.5 Fansoft Report Example

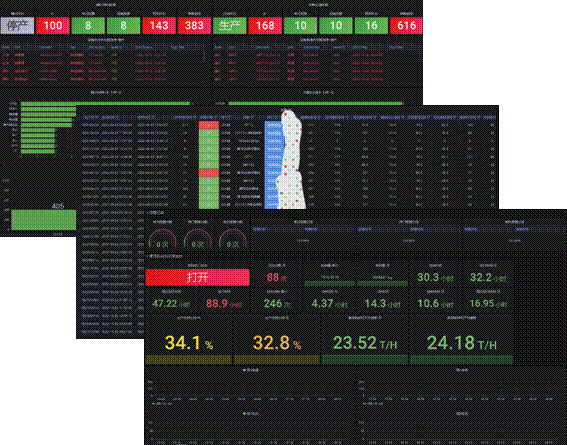

Figure 5.6 Real time and statistical
reports for Grafana configuration |
|
|
|
|
|
