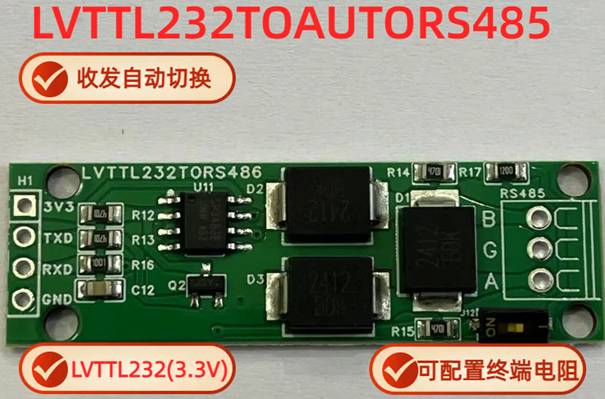

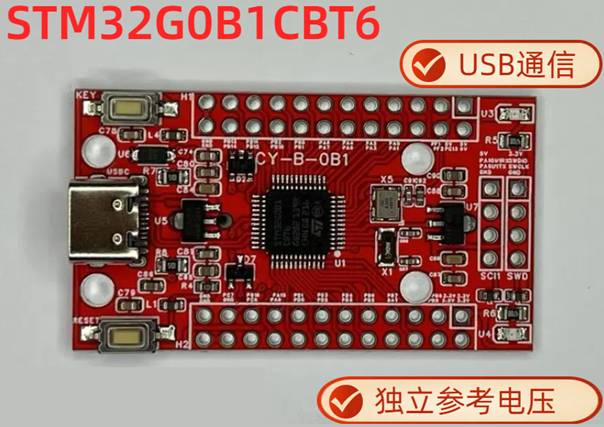

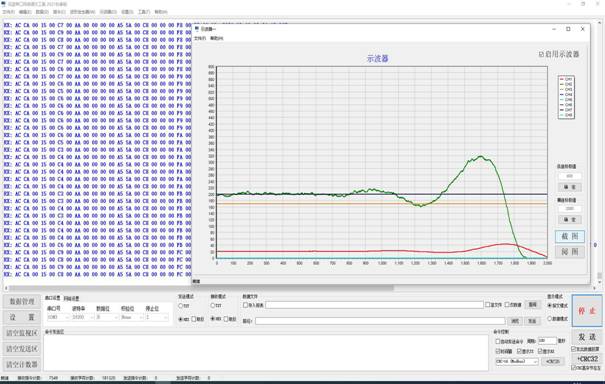

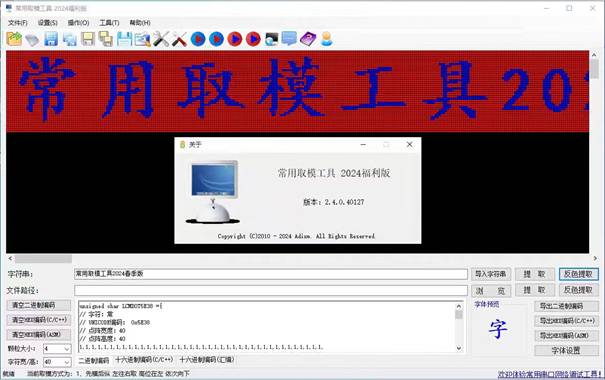

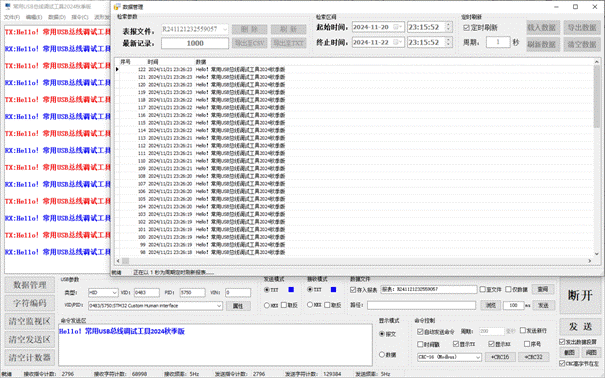

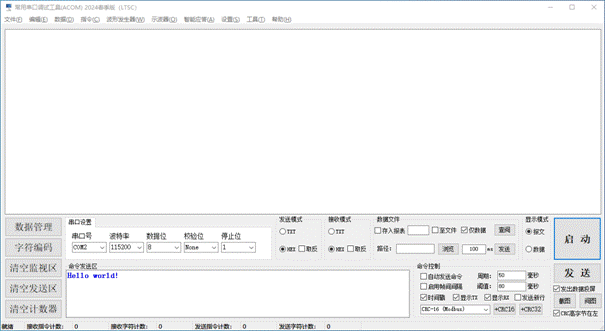

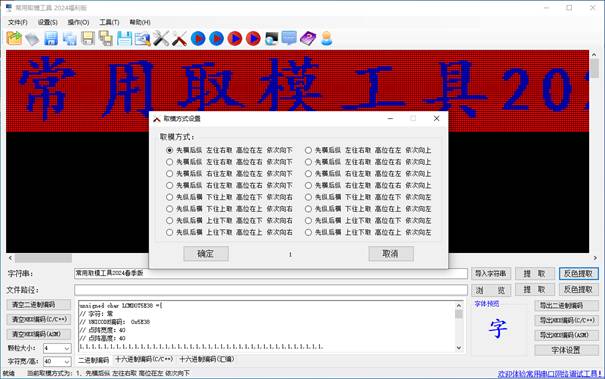

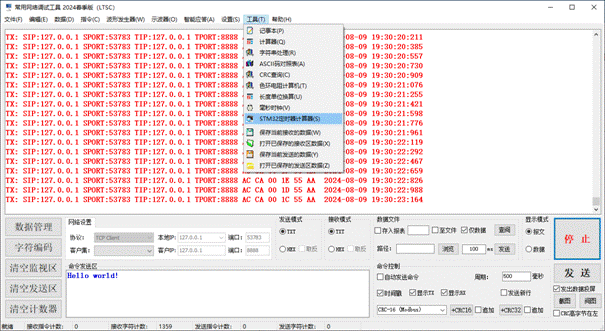

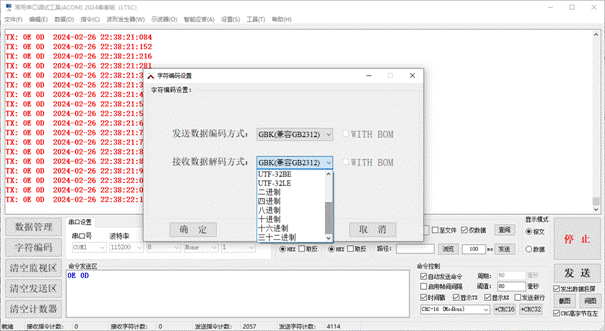

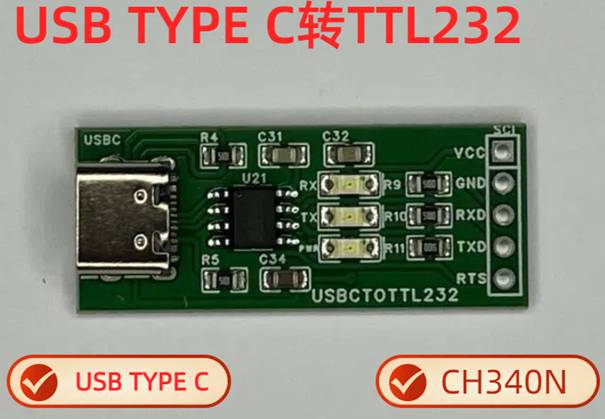

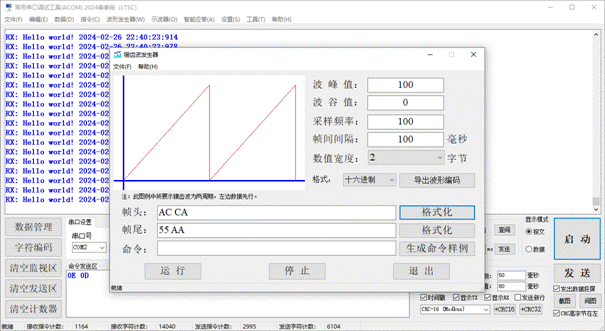

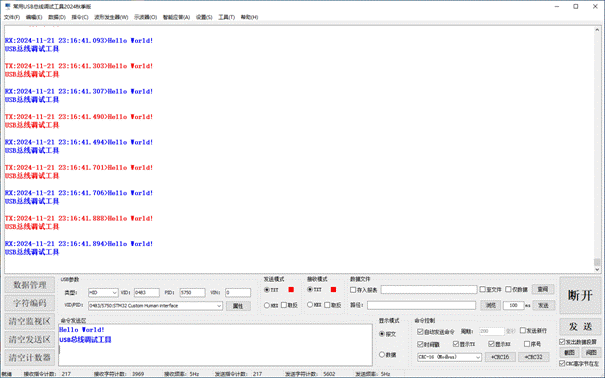

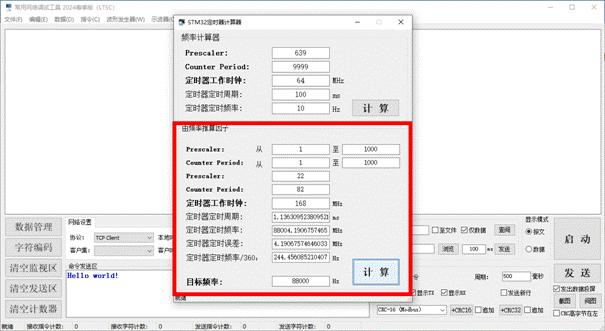

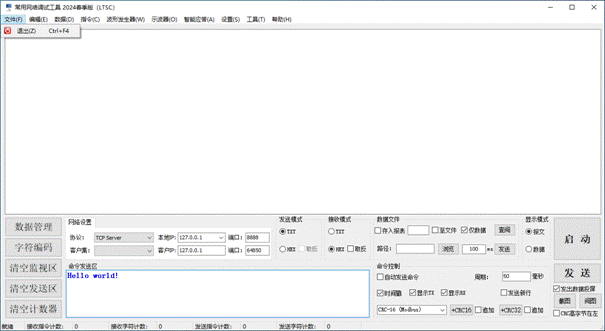

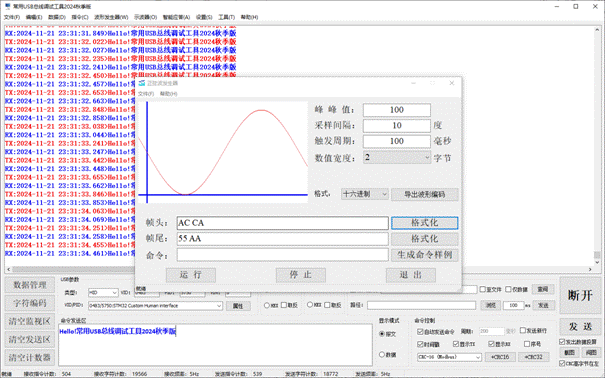

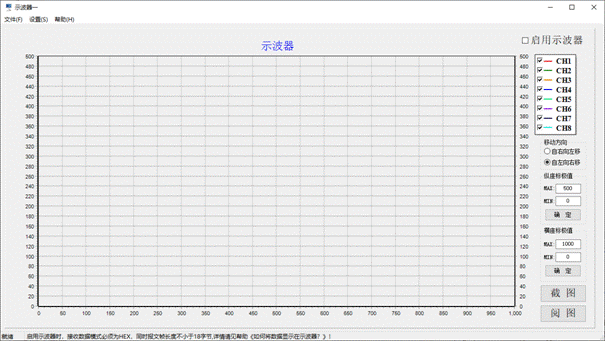

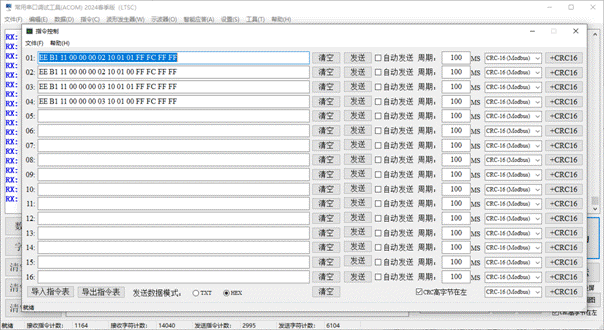

19 Common debugging tools and development board Common debugging tools include serial port, Ethernet USB、Type-C、 Debugging assistants such as mold taking, development boards including various high, medium, and low-speed data acquisition boards, mainstream microcontroller development boards, etc. 19.1 Common serial port debugging tools Supports 1M baud rate (maximum effective baud rate limited by hardware settings), serial data acquisition, text mode sending and receiving, HEX mode sending and receiving, message mode, data mode, data management function, data export to EXCEL report, and storage in database. The specific functions are as follows: 1. Serial port data transmission and reception; 2. Intelligent formatting commands; 3. Supports the following baud rates: 110, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 38400, 56000, 57600, 74880, 76800, 115200, 128000, 153600, 230400, 256000, 307200, 460800, 614400, 921600, 1382400; 4. Support verification: None、even、odd、space、mark； 5. Support data bit lengths: 5, 6, 7, 8; 6. Support stop bit length: 0, 1, 2, 1.5; 7. Support adding CRC checksum; 8. Automatically save received data; 9. Support manual one click data saving; 10. Support querying historical data; 11. Support manual saving of received and sent data; 12. It has rich shortcut keys; 13. Automatic timed sending; 14. Send a new line (useful for sending AT commands); 15. Support hardware flow control; 16. Support data transmission and reception data volume statistics; 17. Supports data saving and can be exported as Excel files; 18. Supports data saving and can be exported as TXT files; 19. Support data saving to cloud database (MS SQL SERVER 2008); 20. Support data saving to local database (MS SQL SERVER 2022); 21. Supports the reception and transmission of characters such as GB2132, GBK, ASCII, UTF-7, UTF-8, UTF-16BE, UTF-16LE, UTF-32BE, and UTF-32LE (supporting WITH BOM and WITHOUT BOM); 22. Support independent, combined, and automatic cyclic sending of multiple commands, automatic cyclic combined sending, and support self set cycles; 23. Automatically remember user settings; 24. Provide sine wave generator function; 25. Provide cosine wave generator function; 26. Provide triangular wave generator function; 27. Provide sawtooth wave generator function; 28. Provide commonly used serial oscilloscope functions, with customizable frame headers; 29. Provide intelligent response function; 30. Provide string processing functionality; 31. Provide millisecond clock function; 32. Data reception and screen flashing support message mode and data mode; 33.STM32 series microcontroller timer frequency calculator (forward and backward); 34. Automatically discover new versions and inquire about updates; 35.Continuous version upgrades to provide better software services. 19.2 Common USB bus debugging tools Support USB-HID data transmission and reception, text mode transmission and reception, HEX mode transmission and reception, message mode, data mode, data management function, data export to EXCEL report, and storage in database. The specific functions are as follows: 1. USB-HID data transmission and reception; 2. Intelligent formatting commands; 3. Support adding CRC check codes; 4. Automatically save received data; 5. Support manual one click data saving; 6. Support querying historical data; 7. Support manual saving of received and sent data; 8. It has rich shortcut keys; 9. Automatic timed sending; 10. Send a new line (useful for sending AT commands); 11. Support hardware flow control; 12. Support data transmission and reception data volume statistics; 13. Supports data saving and can be exported as Excel files; 14. Supports data saving and can be exported as TXT files; 15. Support data saving to a database (MS SQL Server); 16. Support data saving to a database (MySQL); 17. Supports the reception and transmission of characters such as GB2132, GBK, ASCII, UTF-7, UTF-8, UTF-16BE, UTF-16LE, UTF-32BE, and UTF-32LE (supporting WITH BOM and WITHOUT BOM); 18. Support independent, combined, and automatic cyclic sending of multiple commands, automatic cyclic combined sending, and support self set cycles; 19. Automatically remember user settings; 20. Provide sine wave generator function; 21. Provide cosine wave generator function; 22. Provide triangular wave generator function; 23. Provide sawtooth wave generator function; 24. Provide commonly used USB bus oscilloscope functions, with customizable frame headers; 25. Provide intelligent response function; 26. Provide string processing functionality; 27. Provide millisecond clock function; 28. Data reception and screen flashing support message mode and data mode; 29. STM32 series microcontroller timer frequency calculator (forward and backward); 30. Automatically discover new versions and inquire about updates; 31. Continuous version upgrades to provide better software services. 19.3 Common network debugging tools Supports TCP/IP Server, TCP/IP Client, UDP/IP data transmission and reception, text mode transmission and reception, HEX mode transmission and reception, message mode, data mode, data management functions, data export to EXCEL reports, and storage in databases. The specific functions are as follows: 1. TCP/IP Server, TCP/IP Client, UDP/IP data transmission and reception; 2. Intelligent formatting commands; 3. Support adding CRC check codes; 4. Automatically save received data; 5. Support manual one click data saving; 6. Support querying historical data; 7. Support manual saving of received and sent data; 8. It has rich shortcut keys; 9. Automatic timed sending; 10. Send a new line (useful for sending AT commands); 11. Support hardware flow control; 12. Support data transmission and reception data volume statistics; 13. Supports data saving and can be exported as Excel files; 14. Supports data saving and can be exported as TXT files; 15. Support data saving to a database (MS SQL Server); 16. Support data saving to a database (MySQL); 17. Supports the reception and transmission of characters such as GB2132, GBK, ASCII, UTF-7, UTF-8, UTF-16BE, UTF-16LE, UTF-32BE, and UTF-32LE (supporting WITH BOM and WITHOUT BOM); 18. Support independent, combined, and automatic cyclic sending of multiple commands, automatic cyclic combined sending, and support self set cycles; 19. Automatically remember user settings; 20. Provide sine wave generator function; 21. Provide cosine wave generator function; 22. Provide triangular wave generator function; 23. Provide sawtooth wave generator function; 24. Provide commonly used serial oscilloscope functions, with customizable frame headers; 25. Provide intelligent response function; 26. Provide string processing functionality; 27. Provide millisecond clock function; 28. Data reception and screen flashing support message mode and data mode; 29. STM32 series microcontroller timer frequency calculator (forward and backward); 30. Automatically discover new versions and inquire about updates; 31. Continuous version upgrades to provide better software services. 19.4 Common mold taking tools 19.5 USB TYPE C interface to TTL232 bus The USB TYPE C interface is converted to TTL232 serial port, with a main chip of CH340N and a VCC voltage of 5V. It is only used for serial data transmission and reception, and only needs to be connected to the RXD, TXD, and GND pins. Recommended to be used in conjunction with the "Common Serial Debugging Tools 2025 Spring Edition". 19.6 STM32F103C8T6 Micro development board The ADC reference voltage is independently powered and not affected by the load. Provide the following routine: 1. ADC acquisition program; 2. Serial port 1 receives the program; 3. USB-HID transceiver program, as well as C # computer side routines; 4. LED breathing light program; 5. Button program; 6. PWM output demonstration routine. 19.7 LVTTL232TOAUTORS485 Development Board

Apparatus test&Fault diagnosis&Quality analysis		Millisecond data sampling Real-time data compression Capture signal instantaneous mutation
